Motorola MINITOR VI

Motorola Solutions

MINITOR VI

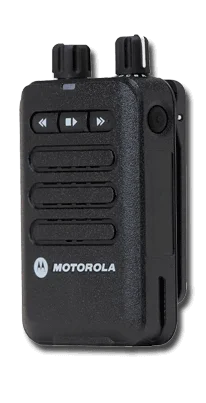

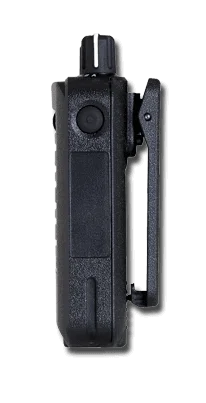

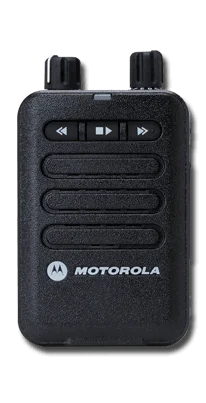

The Motorola MINITOR VI™ Two-Tone Voice Pager is ideal for fire departments and other organizations that need to react quickly in times of emergency. With up to 16 minutes of voice recording, customizable call alerts and improved receiver design, the MINITOR VI Two-Tone Voice Pager is flexible, rugged and reliable. It's built for the realities of first responders.

Frequency Band:
VHF, UHF

Frequency Range:
VHF: 143-174 MHz; UHF: 406-430 MHz, 450-486 MHz, 476-512 MHz

Standard battery chemistry type:
Li-ion

Battery life:
10 Days (80 hours)

Channel spacing:
25kHz / 12.5kHz

Dimensions H x W x D (with standard battery)
4.1 x 2.4 x 1.0 inches

Weight (with standard battery)
6.02 oz

Keypad / Keys

Operating temperature
-30C/+60C

IP Standards
IP56

Single or 5-Channel Models
Wide-and narrow-band programmable channel spacing

Wideband Receiver Design
One pager covers the entire VHF band; three pagers cover the entire UHF band.

Expanded Stored Voice
Stores up to 16 minutes of voice messages

Message Management
Next/previous, fast forward/rewind, delete, lock/unlock

Programmable Addresses
Supports 10 two-tone pairs and 5 individual long-tone alerts.

Silent Scan (5-Channel Model)
Scans two channels silently, alerts on either channel

Priority Scan (5-Channel Model)
Plays all traffic on both channels, alerts on the priority channel

Probability Scan (5-Channel Model)
Plays all traffic on both channels, alerts on either channel

Customizable Alert Tones
Select from pre-programmed alert tones, or import your own .wav files. Select vibrate profiles per address.

Customizable Function Mode Announcement
Announces programmed operating mode. Select from pre-programmed announcements, or import your own .wav files.

Battery Level Announcement
In addition to LED indication, pager can also announce battery level (high, medium, low, critically low).

Flexible Battery Options
Use included rechargeable battery or optional alkaline battery tray (non-intrinsically safe models only) for emergency in-field battery replacement.

Rugged and Reliable Design
IP56 rating for dust and water intrusion. Stands up to Motorola Accelerated Life Testing that simulates years of field use.

Available in an intrinsically safe version for use in areas with flammable gases and vapors, or a non-intrinsically safe version for improved field serviceability and battery options.

Intrinsically Safe (Optional)
UL certified intrinsically safe for hazardous locations: Division 1, Class I, Group C, D, Class II, Group E,F,G, Class III, T3C.
