The new MOTOTRBO™ R7 two-way radio has arrived! When communication is critical, clarity is essential. With exceptional noise canceling, loudness, and voice clarity, your team will never miss a conversation or mishear an instruction.
Built to last and ready to connect your team, MOTOTRBO R7 is designed to perfectly meet the needs of your business. From busy schools and hospitals to loud warehouses and event venues, your team can stay focused on the task ahead and help you meet deadlines without jeopardizing safety.

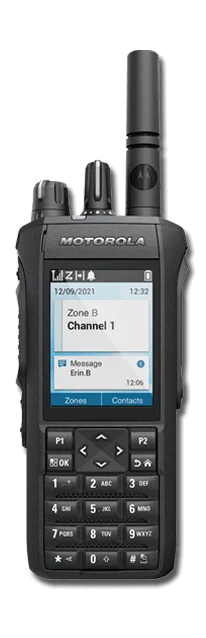

Your business relies on communications. MOTOTRBO R7 is a digital portable two-way radio that offers game-changing audio capabilities in a rugged, future-ready device.
The MOTOTRBO R7 is available as a Full Keypad Model (FKP) or a No Keypad Model (NKP).
Operational Systems
Dual Capacity Direct Mode
Conventional
IP Site Connect
Capacity Plus Single/Multi-Site (Optional)
Capacity Max (Optional)
Frequency bands:
VHF, UHF, 800/900 MHz
Frequency Range:
VHF: 136-174 MHz
UHF: 400-527 MHz
800/900: 806-941 MHz
Number of Channels/Groups/Zones:
Full Keypad Model (FKP)
1000 Channels
No Keypad Model (NKP)
64 Channels
Power Output:
VHF: 5 Watts
UHF: 4 Watts
800/900: 2.5 Watts
Channel Spacing:
12.5 / 25 kHz
Battery Life
MOTOTRBO R7 with 2200 mAh Slim IMPRES Li-Ion battery
Digital / Analog Battery Life: 19 / 14.5 hrs UHF / 20 / 15 hrs VHF
MOTOTRBO R7 with 2850 mAh IMPRES Li-Ion battery
Digital / Analog Battery Life: 25 / 19 hrs UHF / 26 / 19.5 hrs VHF
MOTOTRBO R7 with 3200 mAh HazLoc IMPRES Li-Ion battery
Digital / Analog Battery Life: 28 / 21.5 hrs UHF / 29 / 22 hrs VHF
Wi-Fi 2.4/5.0 GHz
Wi-Fi 5 / IEEE 802.11a/b/g/n/ac
Bluetooth 5.2
Class 2, 33 ft (10 m)
WPA3 Wi-Fi Security Protocol Compliant
Dimensions H x W x D (with standard battery)
MOTOTRBO R7 with 2200 mAh Slim IMPRES Li-Ion battery
Full Keypad Model (FKP)
5.2 x 2.2 x 1.4 in.
No Keypad Model (NKP)
5.2 x 2.2 x 1.2 in.
MOTOTRBO R7 with 2850 mAh IMPRES Li-Ion battery
Full Keypad Model (FKP)
5.2 x 2.2 x 1.4 in.
No Keypad Model (NKP)
5.2 x 2.2 x 1.2 in.
MOTOTRBO R7 with 3200 mAh HazLoc IMPRES Li-Ion battery
Full Keypad Model (FKP)
5.2 x 2.2 x 1.6 in.
No Keypad Model (NKP)
5.2 x 2.2 x 1.5 in.
Weight
MOTOTRBO R7 with 2200 mAh Slim IMPRES Li-Ion battery
Full Keypad Model (FKP)
11 oz
No Keypad Model (NKP)
10 oz
MOTOTRBO R7 with 2850 mAh IMPRES Li-Ion battery
Full Keypad Model (FKP)
12 oz
No Keypad Model (NKP)
11 oz
MOTOTRBO R7 with 3200 mAh HazLoc IMPRES Li-Ion battery
Full Keypad Model (FKP)
13 oz
No Keypad Model (NKP)
12 oz
Keypad / Keys
Touchscreen
Display
2.4 in. 320 x 240 px. QVGA Display
Operating temperature
-22 °F to 140 °F
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G, 810 H
IP Standards
IP68 (waterproof up to 2 meters for 2 hours)
IP66 (concentrated water jet pressure)
Intrinsically Safe
Intrinsically safe option (UL TIA-4950)
MOTOTRBO R7 is a digital portable two-way radio that offers game-changing audio capabilities in a rugged, future-ready device. Its advanced audio processing ensures that your communications are loud and clear, while its rugged construction is ready for harsh environments, and advanced connectivity options get your workforce ready for tomorrow.
Sharp, Clear Audio
MOTOTRBO R7 lets your team hear and be heard the first time — when it matters most. Adaptive Dual Microphone Noise Suppression brings game-changing noise canceling to your team, so you can hear them over the deafening noise of heavy machinery, a roaring stadium at full capacity, or wherever they are. Automatic Acoustic Feedback Suppression intelligently cancels out the feedback of other close-by radios, for a seamless voice experience in tightly packed areas. Intelligent Audio monitors background noise and adjusts speaker volume so users don’t have to, ensuring calls are always at the perfect volume.
Be Heard Above All Else
MOTOTRBO R7 delivers unprecedented loudness, so your team can hear in any situation. Its powerful speaker delivers a
booming loudness of 102 phons, four times louder than a shouting conversation. R7 also features a programmable extra loud profile, bringing total loudness to 107 phons on the radio and with the remote speaker microphone — four times louder than a motorcycle at close range.
Customizable Audio Experience
MOTOTRBO R7 can be adapted with accessories that are specially designed to make your fleet easier to use and even more capable, especially in loud environments. Its re-engineered accessory port adds more robustness and longevity to the point where your accessories connect to the radio, while making it more resistant to dust and corrosion. Remote speaker microphones and other audio accessories let you quickly reach and use your radio. R7’s extra loud profile can be supported by several purpose-built. And our IMPRES™ technology ensures that R7 works seamlessly with your Motorola Solutions accessories, so every call is heard perfectly.
AN000348A01 400 – 527 MHz Whip Antenna |
|
AN000350A01 400 – 450 MHz Stubby Antenna |
|
AN000351A01 440 – 490 MHz Stubby Antenna |
|
PMAE4079 UHF/GPS Combination Wideband Slim Whip Antenna (403-527 MHz) |
|
PMAD4117 VHF/GPS Combination Helical Antenna (136-155 MHz) |
|
PMAD4116 VHF/GPS Combination Helical Antenna (144-165 MHz) |
|
PMAD4118 VHF/GPS Combination Helical Antenna (152-174 MHz) |
|
PMAE4069 UHF/GPS Combination Stubby Antenna (403-450 MHz) |
|
PMAE4070 UHF/GPS Combination Stubby Antenna (440-490 MHz) |
|
PMAE4071 UHF/GPS Combination Stubby Antenna (470-527 MHz) |
|
PMAD4119 VHF/GPS Combination Stubby Antenna (136-148 MHz) |
|
PMAD4120 VHF/GPS Combination Stubby Antenna (146-160 MHz) |
|
PMAD4121 VHF Stubby Antenna (160-174 MHz) |
|

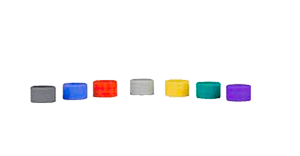

32012144001 Gray Antenna ID Band (pack of 10) |
|
32012144002 Yellow Antenna ID Band (pack of 10) |
|
32012144003 Green Antenna ID Band (pack of 10) |
|
32012144004 Blue Antenna ID Band (pack of 10) |
|
32012144005 Purple Antenna ID Band (pack of 10) |
PMNN4807 IMPRES Li-Ion IP68 2200T Battery |
|
PMNN4810 IMPRES Li-Ion TIA4950 IP68 3200T Battery |
HLN6602 Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch |
|
HLN9985 Waterproof Bag with large strap for securely carrying Motorola two-way radios |
|
NTN5243 Adjustable Nylon Carrying Strap |
|
RLN6486 Leather Radio Strap |
|
RLN6487 Leather Radio Strap - XL |
|
RLN6488 Anti-Sway Strap for Leather Radio Straps |
|
PMLN4651 2" Belt Clip |
|
PMLN5610 2.5" Replacement Swivel Belt Loop |
|
PMLN5611 3" Replacement Swivel Belt Loop |
|
PMLN6074 Wrist Strap |
|
PMLN7008 2.5" Belt Clip |
|
PMLN8299 Hard Leather Carry Case 3 Inch Swivel Belt Loop Display |
|
PMLN8300 Hard Leather Carry Case 2.5 Inch Swivel Belt Loop Display |
|
PMLN8301 Hard Leather Carry Case 3 Inch Fixed Belt Loop Display |
|
PMLN8302 Hard Leather Carry Case 3 Inch Swivel Belt Loop Non Display |
|
PMLN8303 Hard Leather Carry Case 2.5 Inch Swivel Belt Loop Non Display |
|
PMLN8304 Hard Leather Carry Case 3 Inch Fixed Belt Loop Non Display |
25009297001 SUC Power Supply Adapter, US Plug |
|
3087791G01 MUC Power Cord Only, US |
|
NNTN7616 IMPRES Single-Unit Rapid Rate Vehicular Charger, heavy-duty permanent mount |
|
NNTN8525 Travel Charger, Rapid Rate with voltage-regulated adapter, custom charger base, mounting bracket and coil cord |
|
PMPN4284 IMPRES 6 pocket, 1 display charger |
|
PMPN4576 IMPRES 2 Single Charger & US Power Supply |
|
PS000242A01 Power Supply Adaptor |
|
BR000272A01 Wall Mount Bracket for PMPN4284 |
|
WPLN4243 IMPRES Single-Unit Charger Base |
PMLN8092 Acoustic Tube With Rubber Earbud, Replacement Kit |
|
PMLN8120 3.5mm Receive Only Xtra Loud Translucent Tube RSM Earpiece |
|
PMLN8295 2-Wire Swivel Loud Audio Earpiece With Eartip |
|
PMLN8337 1-Wire Single Earbud With Removable Earhook Loud Audio Earpiece |
|
PMLN8341 1-Wire Surveillance Kit With Loud Audio Translucent Tube |
|
PMLN8342 2-Wire Surveillance Kit With Loud Audio Translucent Tube |
|
PMLN8343 3-Wire Surveillance Kit With Loud Audio Translucent Tube |
|
PMLN8363 Rubber Sleeve For Earbud, S "QTY 1, Pack Of 25" |
|
PMLN8364 Rubber Sleeve For Earbud, M "QTY 1, Pack Of 25" |
|
PMLN8365 Rubber Sleeve For Earbud, L "QTY 1, Pack Of 25" |
PMLN8085 Behind-the-Head Headset With flexible boom microphone and PTT, noise reduction 24dB, TIA compliance |
|
PMLN8086 Over-the-Head Headset With flexible boom microphone and PTT, noise reduction 24dB, TIA compliance |
|
PMLN8297 GCAI-Mini PTT NEXUS Adapter |
PMMN4127 Operational Critical Wireless RSM WM500 |
|
PMMN4128 RM780 IMPRES™ RSM, 3.5mm earpiece, radio controls, IP68, HAZLOC |
|
PMMN4131 RM730 IMPRES Windporting Remote Speaker Microphone, Small (IP68) |
|
PMMN4140 RM760 IMPRES Windporting Remote Speaker Microphone, Large (IP68) |
|
PMKN4232 Replacement Cable For RSM |
|
PMLN8121 Low Profile Swivel Clip |
|
PMLN8122 Replacement Dust Cover For RSM (Pack of 10) |
The Motorola MOTOTRBO R7 is available in the following models.
The MOTOTRBO R7 radio features advanced audio technology such as Adaptive Dual Microphone Noise Suppression & Automatic Acoustic Feedback Suppression for clear communication, even in loud environments. With intelligent audio & audio playback feature, users can focus on the task at hand.
The MOTOTRBO R7 radio - our most ergonomic yet, with a slim design, large display, and unbeatable durability. Its IP66 and IP68 ratings make it dust tight and protected from water immersion. The redesigned accessory port is waterproof and dustproof, and it fits comfortably in your hand, on your belt, or even in your pocket. The perfect combination of size, performance, and ruggedness!
The MOTOTRBO R7 radio boasts an advanced physical design, optimized emergency button, large 2.4" display, and intuitive knob design for efficient communication. Its improved keypad, larger screen and optimized digital interface make it easy to use and navigate.
