 | AN000296A01 760-870 Mhz 2.6” Stubby Antenna |
 | AN000297A01 136-174MHz, 380-520MHz, 760-870MHz, 7.9” Antenna |
 | AN000392A01 700/800 MHz, Short Whip Antenna |
 | AN000393A01 UHF, 350-520 MHz, Short Whip Antenna |
| AN000369A01 UHF, 380-470 MHz, Stubby Antenna |
| AN000369A02 UHF, 450-527 MHz Stubby Antenna |
 | 32012144001 Gray Antenna ID Band (pack of 10) |
 | 32012144002 Yellow Antenna ID Band (pack of 10) |
 | 32012144003 Green Antenna ID Band (pack of 10) |
 | 32012144004 Blue Antenna ID Band (pack of 10) |
 | 32012144005 Purple Antenna ID Band (pack of 10) |

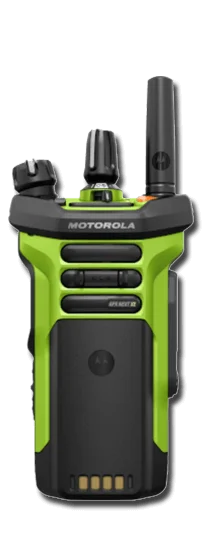

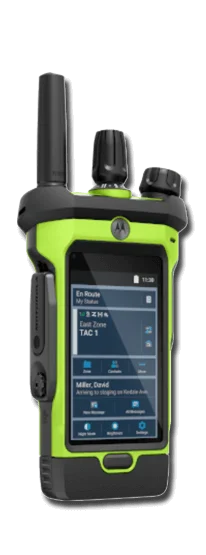

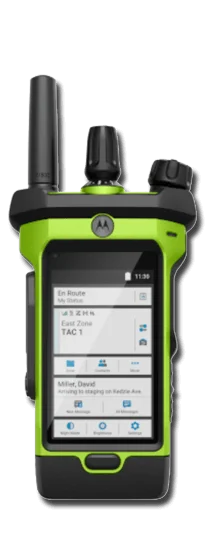

Motorola APX NEXT XE
Motorola Solutions
APX NEXT XE
DISCOVER THE POSSIBILITIES WITH APX NEXT™ XE
ALL-BAND P25 SMART RADIO.
FOCUSED IN THE EXTREME.
Motorola Solutions’ latest development in their mission to advance the lifeline for public safety communications, APX NEXT XE builds on the values of APX XE by delivering new and groundbreaking capabilities.
MISSION-CRITICAL DEVICE
FirstNet Certified and designed to military standards for ruggedness in extreme environments. Exaggerated controls now paired with a Gorilla Glass 3 touchscreen, combined with a user interface purpose-built for public safety that works with or without gloves - in the hottest, wettest, grittiest conditions. Every interaction is simple, fast and logical so you can stay focused on what matters most - your call, your crew and your safety.
Frequency Band:
VHF, UHF R1, UHF R2, 700/800 MHz
Frequency Range:
700/800 (764-870 MHz), VHF (136-174 MHz), UHF R1 (380-470 MHz), UHF R2 (450-520 MHz)
Power Output:
1-3 watts/700/800 MHz, 1-6 watts/VHF, 1-5 watts/UHF
Channel spacing:
12.5/20/25 kHz
Dimensions H x W x D (with standard battery)
5.4"x2.5"x1.7"
Weight (with standard battery)
18.5 oz.
Keypad/Keys
Touchscreen
Display
3.6" Mission-critical Touchscreen: 800x480 TFT 24-bit Full
Color Transflective Display, 1 mm Toughened Glass Lens
Operating temperature
-30ºC / +60ºC
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
Dust Resistance: IP6X
Water Resistance (Submersion): IPX8
ADVANCED MISSION-CRITICAL VOICE AND DATA. ROOTED IN SAFETY
In high-stress and extreme situations, efficient team communication can help make the difference between life and death. Your radio is your lifeline.
Motorola Solutions' APX Next XE is the next step in advancing it. A radio that works when you need it, without distraction or doubt.
Mission-critical performance and best-in-class audio ensure your lifeline is there when you need it. A rugged design, purpose-built for extreme environments. Exaggerated controls make it easy to operate with or without gloves. Natural interfaces - from touchscreens to voice controls - keep your focus where it matters, when it matters. Ultra-connectivity gives you public safety LTE, Bluetooth and Wi-Fi. And new applications and services, SmartConnect and ViQi, bring new intelligence to the field.
APX NEXT XE reduces configuration time and update cycles from months to minutes. Radios can be provisioned and updated in the cloud, and new capabilities - like video, data analytics and AI applications - can be added as your needs evolve.
APX NEXT XE brings usability and performance advancements to every aspect of the radio experience. Interfaces are streamlined. Workflows are accelerated. Mission-critical reliability is ensured. And the focus that keeps firefighters safe and effective in extreme environments is protected.
Motorola IMPRES Two-way Batteries
 | NNTN9217 IMPRES2 4400 mAh Battery UL Div 2 |
 | NNTN9090 IMPRES2 5650 mAh Battery UL Div 2 |
 | PMLN8208 APX NEXT XE Classic Holster |
 | PMLN8209 APX NEXT XE Boston Leather Carry Case |
| PMLN8328 APX NEXT XN Boston Leather Carry Case |
 | AY000223A01 Boston Leather Fireman’s Radio Strap with button back holder |
 | AY000229A01 Boston Leather Fireman’s Radio Strap with button back holder - XL |
 | RLN6488 Boston Leather Anti-Sway Strap for Boston Leather Fireman’s Radio Strap |
 | RLN6486 Boston Leather Fireman’s Radio Strap |
 | NNTN8266 2.5” Hard Plastic Belt Clip |
 | PMLN7965 3” Hard Plastic Belt Clip |
Desktop, Single & Multi-unit Chargers
 | NNTN9115 IMPRES 2 Multi-Unit Charger |
 | NNTN9199 IMPRES 2 Single-Unit Charger |
 | NNTN9212 APX NEXT Pocket (Only for use with NNTN8844) |
 | PMPN4604 IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
 | PMPN4591 IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, US/NA 100-240V |
| AS000178A01 Pocket to use with IMPRES 2 Multi-Unit Fast Charger |
 | NLN7967 Wall Mount Bracket for IMPRES 2 Multi-Unit Chargers |
 | PS000040A01 Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
 | PS000116A01 Replacement Power Supply for IMPRES 2 Single-Unit Fast Charger, 100-240 VAC without Power Cord |
 | 3087791G01 Power Cord for IMPRES 2 Multi-Unit Charger, US/CAN Plug |
| PS000040A02 Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
Travel Chargers
| PMPN4639 APX Next Vehicle Charger |
Surveillance Kits & Earpieces
 | PMLN8120 Receive-Only Earpiece with Translucent Tube, Loud Audio (for PMMN4135 & PMMN4136) |
 | PMLN8092 Replacement Translucent Tube with Rubber Eartip for PMLN8120 |
Remote Speaker Microphone (RSM)
 | PMMN4132 XVE500 High Impact Green, Channel Knob, Xtreme Temperature Cable
|
| PMMN4132_BLK XVE500 Black Housing, Channel Knob, Xtreme Temperature Cable
|
 | PMMN4137 XVE500 High Impact Green, No Channel Knob, Xtreme Temperature Cable
|
 | PMMN4137_BLK XVE500 Black Housing, No Channel Knob, Xtreme Temperature Cable
|
 | PMMN4135 XVP850 RSM with Channel Knob
|
 | PMMN4136 XVP830 RSM without Channel Knob
|
 | 30009402007 Xtreme Temperature Replacement Cable for XVE500 RSM
|
 | PMLN7633 XVE500 RSM Clip Assembly with brass insert designed to work with the Boston Leather Straps (AY000223A01, AY000229A01) requires Clip Button NNTN8749
|
 | PMLN7653 Replacement Channel Knob for XVE500 RSM (20pcs per pack)
|
 | NNTN8749 Clip Button
|
| PMLN8312 Low profile swivel clip with D-ring (10pcs per pack)
|
 | PMKN4260 Replacement coil cord
|
| PMLN8313 Replacement channel knob (20pcs per pack)
|
H55TGT9PW8AN APX NEXT; ALL-BAND MODEL 4.5 PORTABLE
