Motorola Solutions
Safety and focus on the front line are paramount. Reliable and intuitive communications devices that are rugged and easy to use, are non negotiable for first responders. Clear communications have proven to be lifesaving in critical moments.
Reliable P25 radios must evolve to offer sophisticated features that work within a larger public safety ecosystem. They must deliver actionable intelligence to provide increased situational awareness during an incident.

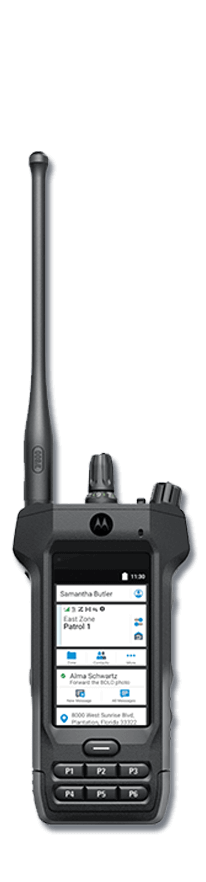

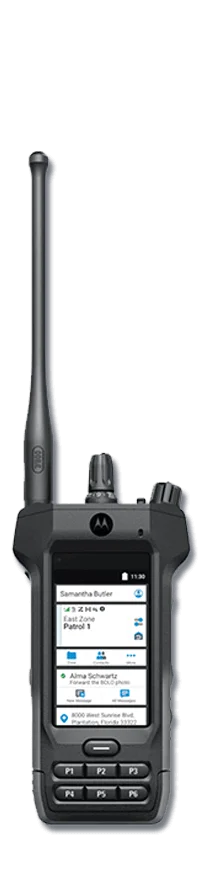

We designed our APX N70 explicitly for this purpose. It provides public safety personnel the mission-critical communications and real-time information they need to stay connected and respond safely.
Inherently rugged, it offers an intuitive interface to ensure reliable eyes-up operation. Wherever they’re working, responders will hear and be heard with the loudest and clearest audio possible.
The APX N70 works reliably across a variety of frequencies, modes and protocols. Communications are secure with hardware encryption algorithms and can be updated quickly with batch radio programming and management tools. Optional next generation features such as LTE and smart apps enhance in-field intelligence for improved situational awareness so first responders can respond with focus and efficiency.
Frequency Band:
700/800 Mhz
Frequency Range:
762-776, 792-806 MHz; 806-825, 851-870 MHz
Power Output:
1-3 Watt
Number of Channels/Zones:
3000 Channels / 200 Zones
Channel spacing:
12.5 / 20 / 25 kHz
Dimensions H x W x D (with standard battery)
5.4 x 2.4 x 1.7 inches
Weight (with standard battery)
17.4 oz
Display
Front: 3.0” Mission-critical Touchscreen: 360x600 TFT 24-bit Full
Color Transflective Display
Top:1.2” Top Display: 200x112 TFT 18-bit Color Transflective
Screen, 1 Line of Icons, 2 Lines of Text, 14 Characters per
Line, 2 mm Toughened Glass Lens
Operating temperature
(-22 to +140 ºF)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP6x Dust
IPx8 submersion (2 m, 2 hr)
Design is more than just being tough. It's also about being simple to use in the most challenging situations that require you to stay focused and ready.
APX N70 is a mission-critical radio, designed and built with legendary APX ruggedness for extreme conditions. It’s tested to military standards, rated IP68, supports immersion in 2 meters of water for up to 4 hours, and includes multiple sensors for improved collaboration and tracking. It’s the radio public safety responders can rely on as their lifeline on the front line today and tomorrow.
APX N70 is rugged and ready for everyday abuse. But should it fail, we will make it right. Rely on us to help get your radios fixed and back in the field where they belong. Our Hardware Repair and Accidental Damage Protection services deliver predictable costs, to give you peace of mind.
AN000411A01 700/800 MHz Short Whip Antenna |
|
32012144001 Gray Antenna ID Band (pack of 10) |
|
32012144002 Yellow Antenna ID Band (pack of 10) |
|
32012144003 Green Antenna ID Band (pack of 10) |
|
32012144004 Blue Antenna ID Band (pack of 10) |
|
32012144005 Purple Antenna ID Band (pack of 10) |
PMNN4816 IMPRES 2 Li-Ion 3200 mAh Battery, IP68 Rugged* |
|
PMNN4817 IMPRES 2 Li-Ion 4400 mAh Battery, IP68 Rugged* |
|
PMNN4818 IMPRES 2 Li-Ion 3650 mAh Battery, IP68 Rugged |
PMLN8371 APX N70 Classic Holster |
|
PMLN8372 APX N70 Hybrid Leather Carry Case with Standard Battery |
|
PMLN8373 APX N70 Hybrid Leather Carry Case with High Capacity Battery |
|
PMLN8374 APX N70 Hybrid Leather Carry Case with TIA4950 Battery |
|
PMLN8507 APX N70 2.5" Belt Clip |
|
PMLN8508 APX N70 3" Belt Clip |
PMPN4604 IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
|
PMPN4591 IMPRES 2 Multi-Unit Fast Charger with 6 Displays and 6 Integrated USB Charging Ports, US/NA 100-240V |
|
AS000178A01 Pocket to use with IMPRES 2 Multi-Unit Fast Charger |
|
NLN7967 Wall Mount Bracket for IMPRES 2 Multi-Unit Chargers |
|
PS000040A02 Replacement Power Supply Unit for IMPRES 2 Single-Unit Fast Charger, US/NA 115V |
PMPN4639 APX Next Vehicle Charger |
PMLN8341 IMPRES™ 1-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
|
PMLN8342 IMPRES™ 2-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
|
PMLN8343 IMPRES™ 3-Wire Surveillance Kit with Translucent Tube, Loud Audio, Black |
|
PMLN8295 IMPRES™ 2-Wire Swivel Earhook with Removable Eartip, Loud Audio, Black |
|
PMLN8337 IMPRES™ 1-Wire Single Earbud with Removable Earhook, Loud Audio, Black |
PMLN8092 Replacement Quick Disconnect Translucent Tube with Clear Rubber Eartip |
|
PMLN8068 Replacement Rubber Eartip, Small (5 per pack) |
|
PMLN8069 Replacement Rubber Eartip, Medium (5 per pack) |
|
PMLN8070 Replacement Rubber Eartip, Large (5 per pack) |
|
PMLN8363 Replacement Rubber Sleeve, Small (25 per pack) |
|
PMLN8364 Replacement Rubber Sleeve, Medium (25 per pack) |
|
PMLN8365 Replacement Rubber Sleeve, Large (25 per pack) |
PMLN8085 Heavy Duty Behind-the-Head Headset with Noise-Canceling Boom Microphone
|
|
PMLN8086 Heavy Duty Over-the-Head Headset with Noise-Canceling Boom Microphone
|
PMLN8265 CH-3 Series Over-the-Head Headset with Nexus Connector
|
|
PMLN8266 CH-3 Series Neckband Headset with Nexus Connector
|
|
PMLN8267 CH-3 Series Hard Hat Attached with Nexus Connector (Hat not included)
|
|
PMLN8297 PTT Nexus Adapter
|
PMMN4141 XVP750 RSM with Channel Knob
|
|
PMMN4142 XVP730 RSM without Channel Knob
|
|
PMMN4128 RM780 RSM
|
Please Contact Us for more information.
SmartConnect
SmartLocate
SmartMapping
SmartMessaging
SmartProgramming
SmartTouch
ViQi Virtual Assistant
