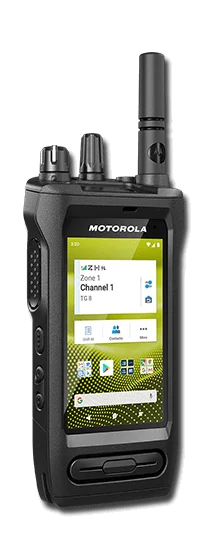

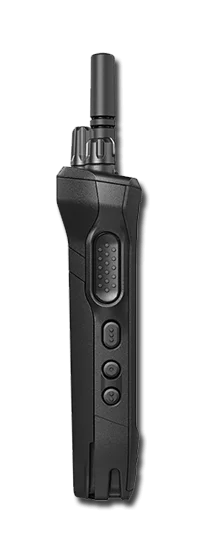

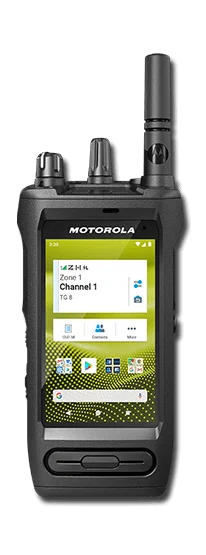

Motorola Ion
Motorola Solutions
Ion
Critical Voice. Instant Data. One Device.
MOTOTRBO Ion brings together renowned PTT performance, an open app ecosystem on the Android platform, and access to the Motorola Solutions technology ecosystem — including video security and analytics, and best-in-class network security. With Ion, teams stay connected across networks and devices. Business-critical data and workflows are unified and simplified. And the capabilities your workforce needs to be at their best are always on.
MOTOTRBO™ Ion is the first business-ready communication device with all-on voice and broadband data capabilities. It brings together renowned PTT performance, an open app ecosystem on the Android platform, and access to our unified technology ecosystem — from video security and analytics solutions, to best-in-class network security, to powerful new software and technology services like smart virtual assistants. With MOTOTRBO Ion, teams stay connected across networks and devices. Business-critical data and workflows are unified and simplified. And the capabilities your workforce needs to be at their best are always on.
LTE
Bands Supported B2, B4, B5, B7, B12, B13, B14, B17, B30, B48 (Private Band)
Device Class 4
Certifications Verizon, AT&T, Bell Mobility
DMR (MOTOTRBO)
Operational Systems
Digital and Analog Conventional
Dual Capacity Direct Mode
IP Site Connect
Capacity Plus Single/Multi-Site
Capacity Max
Frequency Band:
UHF
Frequency Range:
UHF: 400-527 MHz
Number of Channels/Groups/Zones:
Up to 1000 Channels / Up to 250 Zones
Power Output:
4 W
Channel spacing:
12.5 / 25 kHz
Wi-Fi
Standards Supported 802.11a/b/g/n/ac
Frequency Range 2.4 GHz, 5 GHz
Security Supports WEP, WPA, WPA2, WPA3, Wi-Fi Enhanced Open
BLUETOOTH
Version 5.0 + LE +BR/EDR
Range Class 1.5, 33ft (10m)
Dimensions H x W x D (with standard battery)
(with Standard Battery) 5.6 in x 2.8 in x 1.2 in (143 mm x 70 mm x 29 mm)
(with Standard Hazloc Battery) 5.6 in x 2.8 in x 1.5 in (143 mm x 70 mm x 38 mm)
(with High-Capacity Battery) 5.6 in x 2.8 in x 1.6 in (143 mm x 70 mm x 41 mm)
Weight
(with Standard Battery) 15 oz (414 g)
(with Standard Hazloc Battery) 15 oz (439 g)
(with High-Capacity Battery) 17 oz (478 g)
Keypad / Keys
Touchscreen
Display
Main Display
4 in. color display, 480 x 800 px
Capacitive touchscreen with Gorilla Glass
Usable with gloves up to 4 mm thick
Resistant to false actuation from fresh or salt water, snow, dirt or grease
Top Display
1.05 in. Monochromatic LCD
Memory
4 GB RAM
32 GB Internal Storage
Storage is expandable with external up to 128 GB microSD™ card
Card Slot
eSIM for NA
1 x Nano SIM, 1 x Micro SD
Camera
Rear 13 MP
Auto Focus
High-Output LED Flash
8x Digital Zoom
Operating temperature
-20 to +60 ºC (-4 to +140 ºF)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G, 810 H
IP Standards
Dust Resistance: IP68
Water Resistance (Submersion): IP68
Apps are ON
Full Multimedia Capabilities On An Android Platform With An Open App Ecosystem
An intuitive touchscreen lets you view high resolution images, and an integrated camera lets you send — even stream — photos and videos. With MOTOTRBO Ion, the apps your enterprise needs — like ticketing, scanning, searching, collaborating, and more — are all on. Plus, Ion gives you access to Motorola’s unified technology ecosystem, so you can turn on new intelligence capabilities, like smart virtual assistants and location apps.
Features
- Android Platform
- Open App Ecosystem
- Unified Technology Ecosystem
- Full Multimedia Capabilities
- Intuitive Touchscreen Interface
- Built For Any Environment
Dependability is ON
Designed For Dependability And Ease Of Use, In Any Environment
Pristine audio quality lets you hear and be heard when it matters most. And ultrastrong materials — including a rugged touchscreen — are used inside and out for outstanding impact resilience. UI, design, and engineering all come together to create a device you can depend on to work when you need it, no matter what.
Features
- Industry-Leading Audio
- Ultra-Rugged Touchscreen
- Customizable Experience
- Long Battery Life
- Redesigned Antenna
- Intrinsically Safe
Connectivity is ON
Built To Keep Your Workforce Connected Anywhere You Do Business
You can seamlessly communicate through voice and data, over public and private networks. And Seamless Voice Handover automatically switches you to broadband when you roam beyond your radio system coverage, so your connectivity is always on when you need it.
Features:
- Dedicated PTT Device
- Seamless Voice Handover
- Full Network Interoperability With Wave
- DMR (MOTOTRBO)
- Long Term Evolution (LTE)
- Wi-Fi
- Bluetooth
Uptime is ON
Deploy Your Radios Faster And Keep Them In The Field Longer
With cloud-based configuration and provisioning, remote updates, and real-time device monitoring, you can deploy and maintain your radio fleet with minimal touch and downtime. So your IT team can spend less time managing devices, and your workforce can spend more time on point and on-task.
Features
- Fast Setup And Updates
- Seamless Device Management
- Managed And Supported Services
Security is ON
Helps You Stay Safe From Cyber Threats
A defense-in-depth approach provides multiple layers of security to help prevent unauthorized device access and malicious activity, and to safeguard your critical data. With the highest level of device and network security, combined with real-time threat monitoring, Ion lets you use data and Android apps with confidence — even on public networks.
Features
- Device Security
- Application Security
- Data Security
 | AN000348A01 400 – 527 MHz Whip Antenna |
 | AN000350A01 400 – 450 MHz Stubby Antenna |
 | AN000351A01 440 – 490 MHz Stubby Antenna |
 | 32012144001 Gray Antenna ID Band (pack of 10) |
 | 32012144002 Yellow Antenna ID Band (pack of 10) |
 | 32012144003 Green Antenna ID Band (pack of 10) |
 | 32012144004 Blue Antenna ID Band (pack of 10) |
 | 32012144005 Purple Antenna ID Band (pack of 10) |
Motorola IMPRES Two-way Batteries
 | PMNN4803 IMPRES 2 2820 mAh Li-ion Battery |
 | PMNN4804 IMPRES 2 2900 mAh Li-ion Battery |
 | PMLN8126 MOTOTRBO Ion Plastic Carry Case with 2.5in Fixed-Angle Spring-Action Belt Clip |
 | PMLN8127 MOTOTRBO Ion Plastic Carry Case with 2.5in Hard Leather Swivel Belt Loop |
 | PMLN5407 Replacement 2.5” Leather Swivel Belt Loop |
 | PMLN5409 Replacement 3” Leather Swivel Belt Loop |
 | PMLN4651 2" Fixed-Angle Spring-Action Belt Clip |
 | PMLN7008 2.5” Fixed-Angle Spring-Action Belt Clip |
Desktop, Single & Multi-unit Chargers
 | PMPN4524 IMPRES 2 Multi-Unit Charger |
 | PMPN4498 IMPRES 2 Single-Unit Charger |
 | AS000180A01 Ion Battery Adapter (only for use with PMPN4284 Multi-Unit Charger) |
 | BR000272A01 Wall Mount Bracket for Multi-Unit Charger |
Surveillance Kits & Earpieces
 | PMLN8082 IMPRES 1- Wire Surveillance Kit with Loud Audio Translucent Tube With replaceable quick disconnect clear tube, inline PTT and microphone, loud audio supported, black, TIA compliance |
 | PMLN8083 IMPRES 2 - Wire Surveillance Kit with Loud Audio Translucent Tube With replaceable quick disconnect clear tube, inline PTT and microphone, loud audio supported, black, TIA compliance |
 | PMLN8084 IMPRES 3 - Wire Surveillance Kit with Loud Audio Translucent Tube With replaceable quick disconnect clear tube, inline PTT and microphone, loud audio supported, black, TIA compliance |
 | PMLN7560 Rx Only, Translucent Tube For use with WM500 RSM (PMMN4127), 3.5 mm jack, black, TIA compliance |
 | PMLN8120 Rx Only, Loud Audio Translucent Tube For use with RSM RM780 (PMMN4128), 3.5 mm jack, TIA compliance |
 | PMLN8123 EP910W Operation Critical Wireless Earpiece w/PTT Volume up/down, functional button and noise cancellation, Bluetooth 4.2, minimum 8-hour battery talk time, Includes micro-USB cable for charging, earbud replacements available |
 | PMLN8085 Behind-the-Head Headset With flexible boom microphone and PTT, noise reduction 24dB, TIA compliance |
 | PMLN8086 Over-the-Head Headset With flexible boom microphone and PTT, noise reduction 24dB, TIA compliance |
Remote Speaker Microphone (RSM)
 | PMMN4127 WM500 Wireless Remote Speaker Mic
|
 | PMMN4128 RM780 Remote Speaker Mic
|
The Motorola Ion is available in the following models.
- AAH90ZDU9RH1AN UHF, 403-512 MHz, 4 Watts, 1,000 Channels
Brochures
- Motorola MOTOTRBO Ion Solution Brochure
- Motorola MOTOTRBO Ion Device Brochure
- Motorola MOTOTRBO Ion Fleet Management Brochure
Catalogs
Data Sheets
Fact Sheets
- Motorola MOTOTRBO Ion Barcode Scanning Fact Sheet
- Motorola MOTOTRBO Ion Security Fact Sheet
- Vigilant Mobile Companion LPR App Fact Sheet
User Case
Videos
MOTOTRBO Ion Demo: Seamless Roaming
Seamless Roaming on the MOTOTRBO Ion. Automatic switching between networks ensures uninterrupted push-to-talk communication while on the move. Perfect for delivery truck drivers or anyone needing instant communication while off-property.
MOTOTRBO Ion Demo: LTE Capabilities and Applications
The MOTOTRBO Ion smart radio - instant voice & broadband data capabilities, dual SIM, access to apps via Google Play store, perfect for enterprise communication.
MOTOTRBO Ion Demo: Form Factor and Durability
The MOTOTRBO Ion radio: dependable instant comms & broadband data on Android's user-friendly interface. Durable, easy to use, IP68 rated, 4" touchscreen, swappable battery. Get the benefits of a radio plus broadband & apps in one device.
Introducing Motorola Solutions MOTOTRBO™ Ion Smart Radio
Motorola Solutions' MOTOTRBO Ion is the next generation business-ready smart radio with voice, broadband data and multimedia capabilities to connect teams, inform operations and keep businesses running smoothly. It works on the digital mobile radio (DMR) standard, Wi-Fi, public LTE and private broadband networks and is built to support searching, tracking, ticketing, scanning and collaboration to boost productivity, especially within industries such as manufacturing, transportation, logistics and hospitality that rely on mobile workers.
