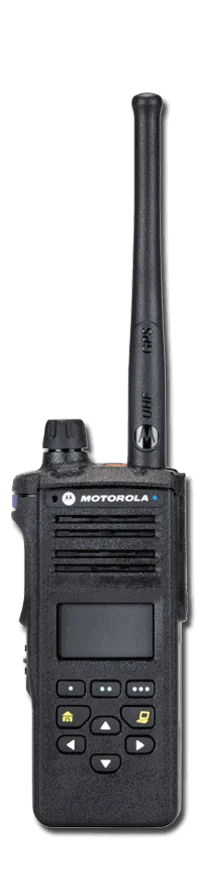

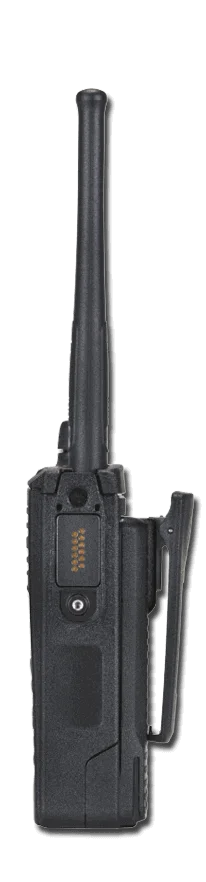

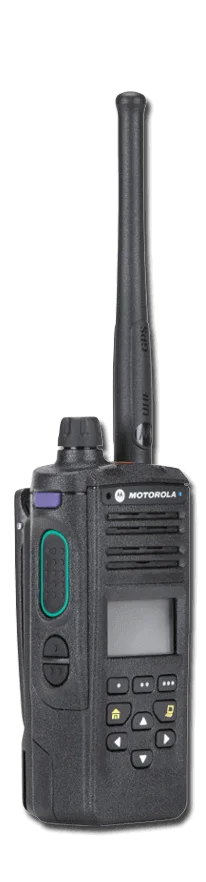

Motorola APX 4000

Motorola Solutions

APX 4000

The APX 4000 delivers all the benefits of P25 Phase 2 technology in a compact and powerful portable radio. Easy to use, tough as nails, at a value that's hard to beat, it connects first responders with each other, and with public works, utilities and rural public safety users for fast, seamless communications.

Durable enough to withstand dust, heat, shock and submersion, the APX 4000 is IP67 and MIL-STD certified. It's packed with key features to help keep you safe, like mission-critical wireless, two-microphone noise suppression, GPS outdoor location and AES encryption.

Frequency Band:
700 MHz, 800 MHz, 900 MHz, UHFR2, UHFR1, VHF

Frequency Range:
700/800 (763-776, 793-806, 806-824, 851-870 MHz)
900 (896-901, 935-940 MHz)
VHF (136-174 MHz)
UHF R1 (380-470 MHz)
UHF R2 ( 450-520 MHz)

Power Output:
1-5 Watts Max

Number of Channels/Groups/Zones:
512 Channels

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
8-10 hours

Channel spacing:
6.25 kHz, 12.5 kHz, 25 kHz

Dimensions H x W x D (with standard battery)
5.26 x 2.37 x 1.72

Weight (with standard battery)
9.17 oz

Keypad / Keys
Model 2 Backlight keypad, 3 soft keys, 4 direction Navigation key, Home and Data buttons
Model 3 Backlight keypad, 3 soft keys, 4 direction Navigation key, 4x3 keypad, Home and Data buttons

Display
Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 3 menus, White backlight

Operating temperature
-30ºC / +60ºC

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP54, IP67

Simplified controls
With two dedicated control knobs, one for volume and the other for channel and talkgroup selection, you can operate the radio by touch, even in complete darkness

Integrated GPS
Enables accountability and location tracking of an individual, which can be sent to a map-based location application. Optional feature and requires ASTRO 25 Integrated Voice and Data.

Encryption
Optional FIPS 140-2 Level 3 AES certified hardware encryption provides tamper-proof security to ensure secure communications.

Text messaging
Offers a freeform or canned messaging solution so you can efficiently and discreetly send and receive messages. Optional feature and requires ASTRO 25 Integrated Voice and Data.

Over-the-air programming
Motorola's POP25 solution allows portable and mobile radios to be programmed over the air via the ASTRO 25 systems while remaining in the field. Optional feature and requires ASTRO 25 Integrated Voice and Data.

Motorola NAF5085

NAF5085

700/800 MHz, GPS Whip Antenna

Motorola PMAE4065

PMAE4065

UHF, GPS Whip Antenna

Motorola NAR6593

NAR6593

VHF, GPS Whip Antenna

Motorola PMAF4008

PMAF4008

900 MHz, GPS Antenna

Motorola NAR6595

NAR6595

1/4 Wave, 700/800 MHz, GPS Stubby Antenna

Motorola FAF5259

FAF5259

UHF Range 1, GPS Stubby Antenna

Motorola FAF5260

FAF5260

UHF Range 2, GPS Stubby Antenna

Motorola IMPRES Two-way Batteries

Motorola NNTN8128

NNTN8128

IMPRES Li-Ion 2000 mAh Slim, Submersible, Battery-IP67

Motorola NNTN8560

NNTN8560

APX 4000 two knob radio IMPRES Hi-Cap Li-Ion 2500 mAh battery Submersible (IP57), Intrinsically Safe (TIA4950)

Motorola PMNN4424

PMNN4424

IMPRES Li-Ion 2350 mAh Submersible, Battery-IP67

Motorola PMNN4448

PMNN4448

IMPRES Li-Ion 2800 mAh Submersible, Battery-IP67

Mission-Critical Wireless Accessories (MCW)

Motorola NTN2570

NTN2570

Mission-Critical Wireless Earpiece with 12” cable and push-to-talk pod

Motorola NTN2571

NTN2571

Mission-Critical Wireless push-to-talk pod

Motorola NNTN8442

NNTN8442

Mission-Critical Wireless Remote Control Keyfob with programmable buttons

Motorola PMLN7052

PMLN7052

1- Wire Surveillance kit with Translucent Acoustic tube for Wireless PTT Pods

Motorola NNTN8294

NNTN8294

1- Wire Earbud for Wireless Push-to-Talk pod with 11.5” cable, Black

Motorola NNTN8295

NNTN8295

1- Wire Earbud for Wireless Push-to-Talk pod with 45” cable, Black

Motorola NNTN8296

NNTN8296

Covert Audio Kit for Mission-Critical Wireless PTT Pod

Motorola NNTN8385

NNTN8385

Y-Adapter and Retention Hook for Mission-Critical Wireless Push-to-Talk Pod

Motorola RLN4920

RLN4920

neck loop for Discreet Earpiece Kit

Motorola NNTN8434

NNTN8434

Accessory Kit, Completely Discreet Wireless Surveillance Kit

Motorola NTN2572

NTN2572

Replacement Wireless Earpiece 12-inch cable

Motorola RLN6489

RLN6489

Mission-Critical Wireless Covert Pack-N-Go Kit, Basic.

Kit includes: NNTN8296 Basic Mission-Critical Wireless Covert Kit, NTN2571 Mission-Critical Wireless Push-to-Talk (PTT) Pod and NNTN8442 Mission Critical Wireless Remote Con-trol Unit

Motorola RLN6501

RLN6501

Mission-Critical Wireless Covert Pack-N-Go Kit, Advanced.

Kit includes: All contents of Covert Pack-n-Go Kit plus RLN4922 Completely Discreet Earpiece Kit and NNTN8385 Wireless neck loop Y-adapter

Motorola PMLN6085

PMLN6085

Leather Carry Case with 2.5” Swivel Belt Loop

Motorola PMLN7182

PMLN7182

Carry case for APX 4000 two knob radios

Motorola PMLN7229

PMLN7229

Replacement belt loop for PMLN7182

Motorola PMLN4651

PMLN4651

2” Hard Plastic Belt Clip

Motorola PMLN7008

PMLN7008

2.5” Hard Plastic Belt Clip

Motorola PMLN5407

PMLN5407

Replacement 2.5” Leather Swivel Belt Loop

Motorola PMLN5408

PMLN5408

Replacement 2.75” Leather Swivel Belt Loop

Motorola PMLN5409

PMLN5409

Replacement 3” Leather Swivel Belt Loop

Motorola 4200865599

4200865599

1.75” Wide Leather Belt

Motorola NTN5243

NTN5243

Adjustable Nylon Carrying Strap

Desktop, Single & Multi-unit Chargers

Motorola PMPN4174

PMPN4174

IMPRES Single-Unit Charger, 115V

Motorola PMPN4284

PMPN4284

IMPRES Multi-Unit Charger, 115V

Motorola BR000272A01

BR000272A01

Wall mount bracket for PMPN4284 Charger

Vehicular, Travel Chargers & Vehicular Adapter (VA)

Motorola NNTN7616

NNTN7616

IMPRES Single-Unit Rapid Rate Vehicular Charger

Motorola NNTN8525

NNTN8525

Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord

Ear Microphone Systems

Motorola PMLN5653

PMLN5653

IMPRES Ear Microphone with Bone Conduction and programmable button, black

Motorola 0180300E25

0180300E25

Earguard with Adjustable Loop

Surveillance Kits & Earpieces

Motorola PMLN6125

PMLN6125

1-Wire Receive-only earpiece, black

Motorola PMLN6126

PMLN6126

1-Wire Receive-only earpiece, beige

Motorola PMLN6127

PMLN6127

IMPRES 2-Wire Surveillance Kit, programmable button, black

Motorola PMLN6128

PMLN6128

IMPRES 2-Wire Surveillance Kit, programmable button, beige

Motorola PMLN6129

PMLN6129

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black

Motorola PMLN6130

PMLN6130

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige

Motorola PMLN6123

PMLN6123

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black

Motorola PMLN6124

PMLN6124

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige

Motorola ZMN6038

ZMN6038

2-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter

Image Not Available

ZMN6039

3-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter

Motorola ZMN6032

ZMN6032

2-Wire Surveillance Kit, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter

Motorola ZMN6031

ZMN6031

3-Wire Surveillance Kit, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter

Motorola BDN6664

BDN6664

1-Wire Receive-Only Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783

Motorola BDN6726

BDN6726

1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Image Not Available

BDN6665

1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6727

BDN6727

1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Image Not Available

RLN5314

1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded.

Requires BDN6783

Motorola RLN5313

RLN5313

1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded.

Requires BDN6783

Motorola RLN5312

RLN5312

2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded.

Requires BDN6783

Image Not Available

BDN6666

1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Image Not Available

BDN6728

1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6667

BDN6667

2-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6669

BDN6669

2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783

Motorola BDN6731

BDN6731

2-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6668

BDN6668

3-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6730

BDN6730

3-Wire Surveillance Kit with Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6670

BDN6670

3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.

Motorola BDN6732

BDN6732

3-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Motorola PMLN5101

PMLN5101

IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair)

Motorola PMLN5096

PMLN5096

Earset D-Shell

Motorola PMLN5102

PMLN5102

Ultra Lite Headset

Motorola RMN5058

RMN5058

Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit

Motorola PMLN5275

PMLN5275

Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB

Motorola RLN6490

RLN6490

XBT Operations-Critical Wireless Behind-the-Neck Headset

Motorola RLN6491

RLN6491

XBT Operations-Critical Wireless Headband Style Headset

3M Peltor Heavy-Duty Headsets

Direct Connect

Motorola RMN5137

RMN5137

MT Series Over-The-Head Headset, direct radio connect

PELTOR PART NUMBER: MT7H79A-C5063-34

Motorola RMN5138

RMN5138

MT Series Neckband Headset, direct radio connect

PELTOR PART NUMBER: MT7H79B-C5063-34

Motorola RMN5139

RMN5139

MT Series Hard Hat Attached Headset, direct radio connect

PELTOR PART NUMBER: MT7H79P3E-C5063-34

PTT Adapter Configurations

Motorola PMLN6088

PMLN6088

MT Series Over-the-Head Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79A-34

Motorola RLN6477

RLN6477

MT Series Neckband Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79B-34

Motorola RMN4051

RMN4051

MT Series Hard Hat Attached with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT7H79P3E-34

Motorola RMN4052

RMN4052

TacticalPro Series Over-The-Head Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7A-34

Motorola RMN5135

RMN5135

TacticalPro Series Neckband Headset with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7B-07-34

Motorola RMN4053

RMN4053

TacticalPro Series Hard Hat Attached with Nexus connector

Requires PTT Adapter PMLN6095

PELTOR PART NUMBER: MT15H7P3E-34

Motorola PMLN6095

PMLN6095

PTT Nexus Adapter

PELTOR PART NUMBER:FL5063-34

RSM Configurations

Motorola RMN4055

RMN4055

HT Series Listen Only Over-The-Head Headset with 3.5mm NON threaded connector

APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084

PELTOR PART NUMBER: HTM79A-34

Motorola RMN5132

RMN5132

HT Series Listen Only Neckband Headset with 3.5mm NON threaded connector

APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084

PELTOR PART NUMBER: HTM79B-34

Motorola RMN5133

RMN5133

HT Series Listen Only Hard Hat Attached Headset with 3.5mm NON threaded connector

APX radio requires RSM: PMMN4062, PMMN4069 or PMMN4084

PELTOR PART NUMBER: HTM79P3E-34

Motorola NMN6271

NMN6271

IMPRES XP RSM with Dual Mic Noise Suppression, Volume Control, 1-Programmable Button and Orange Button. Rugged, Submersible (IP68)

Motorola NMN6274

NMN6274

IMPRES XP RSM with Dual Mic Noise Suppression, 3.5mm threaded jack, Volume Control, 1-Programmable Button and Orange Button (IP55)

Motorola RLN6544

RLN6554

Wireless RSM with Battery, Clip (RLN6544) and Dual Unit Charger (PMLN7120)

Motorola HMN4104

HMN4104

IMPRES Display RSM with Audio Jack, Channel Selector, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68)

Motorola HMN4103

HMN4103

IMPRES Display RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68)

Motorola HMN4101

HMN4101

IMPRES RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68)

Motorola PMMN4083

PMMN4083

IMPRES RSM Windporting, Rugged (IP68)

Motorola PMMN4084

PMMN4084

IMPRES RSM with 3.5mm Threaded and NON-Threaded Audio Jack and Orange Button. Noise Canceling (IP54)

NOT INTENDED FOR FIRE MARKETS

Motorola PMMN4099

PMMN4099

IMPRES Windporting RSM with Volume Toggle Switch, Orange Button, 3.5mm NON-Threaded Jack (IP55)

Motorola PMMN4062

PMMN4062

IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Canceling (IP54)

NOT INTENDED FOR FIRE MARKETS

Motorola PMMN4065

PMMN4065

IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57)

Motorola PMMN4069

PMMN4069

IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55)
